1 Legal Information

This document and all associated illustrations are licensed under the Creative Commons Attribution 2.5 License. Any works which contain material derived from this document must cite The VirtualGL Project as the source of the material and list the current URL for the VirtualGL web-site.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/.) Further information is contained in LICENSE-OpenSSL.txt, which can be found in the same directory as this documentation.

VirtualGL is licensed under the wxWindows Library License, v3, a derivative of the LGPL.

2 Overview

VirtualGL is an open source package which provides hardware-accelerated 3D rendering capabilities to thin clients. Normally, when you run a Unix or Linux OpenGL application inside a thin client environment (such as VNC, remote X11, NX, etc.), the 3D application either does not work at all, is forced to use a slow software 3D renderer, or (worse) is forced to send every 3D command and piece of 3D data over the network to be rendered on the client machine. With VirtualGL, the OpenGL commands from the application are redirected onto a dedicated server’s 3D accelerator hardware. The resulting rendered images are then read back from the 3D hardware and composited into the appropriate window on the user’s desktop. This produces a completely seamless shared 3D environment that performs fast enough to take the place of a dedicated 3D workstation.

VirtualGL has two basic modes of operation:

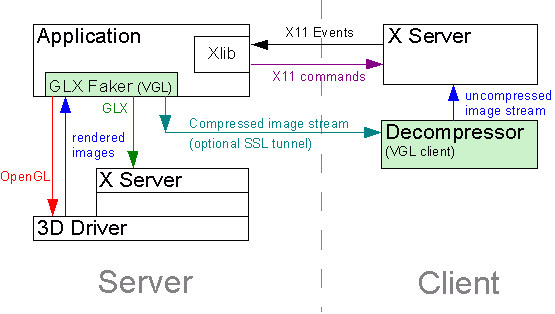

1. “Direct” Mode

Direct Mode requires an X server to be running on the client machine. This X server processes X11 commands from the application in order to render the non-OpenGL (2D) elements of the application’s user interface. The X server also feeds X11 input events (key, mouse, window resize, etc.) back to the application. Meanwhile, VirtualGL intercepts the GLX calls from the application and modifies these calls such that they are sent to the server’s X server rather than the client’s. VirtualGL also modifies the GLX calls such that the OpenGL contexts are created in off- creen Pbuffers instead of X windows. When an end-of-frame trigger is detected (such as glXSwapBuffers()), VirtualGL reads back the rendered 3D images from the server’s framebuffer, compresses them using a high-speed image codec, and sends the compressed images on a separate socket to the client. A separate VirtualGL Client application runs on the client machine, and this client application decompresses the image stream from the server and composites it into the appropriate X window. Direct Mode is the fastest solution for running VirtualGL on a local area network, and it provides the same usability as running the application locally. Direct Mode is typically used to run data-intensive OpenGL applications in a “cold room” and remotely interact with these applications from a laptop or a slim PC located elsewhere in the same building/campus. Such big data applications often exceed the capabilities of a single PC (particularly a 32-bit PC), and the data sizes are large enough that transmitting the data across even the fastest of local area networks is impractical.

2. “Raw” or “Proxy” Mode

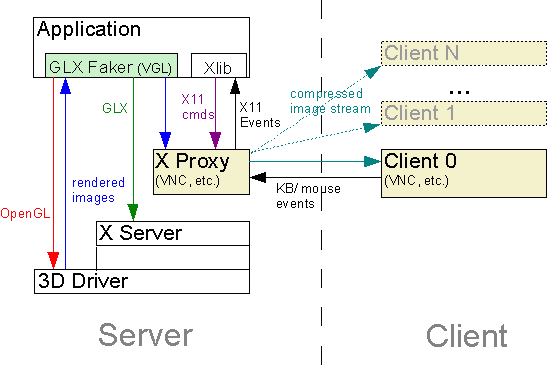

In this mode, there is no X server running on the client machine. The 2D rendering is instead performed on the server machine by an “X Proxy,” which can be one of any number of Unix thin client applications, such as VNC. These X proxies act as normal X servers, except that they perform X11 rendering to a virtual desktop in the server’s memory rather than to a real framebuffer. Changes to regions of the virtual desktop are compressed as image tiles and sent to any connected clients. As with Direct Mode, VirtualGL intercepts the GLX calls from the application, redirects the calls to the server’s X server, and modifies them such that OpenGL rendering occurs in Pbuffers instead of X windows. VirtualGL also reads back the rendered images, as with Direct Mode. But in Raw Mode, VirtualGL does not perform any image compression. It instead draws the rendered 3D images into the X proxy as uncompressed 2D bitmaps, thus relying on the X proxy to compress the images and send them to the client. Raw Mode, in combination with TurboVNC, is the fastest solution for running VirtualGL on a wide area network (broadband, T1, etc.), and it provides rudimentary built-in collaboration capabilities. But whereas Direct Mode can mimic the behavior of running the application locally, VNC requires the user to interact with the entire remote desktop in a single window and thus does not provide the same user experience as running the application locally. Raw Mode is typically used to run data-intensive 3D applications in a “cold room” and remotely interact with these applications from a PC located in another city.

3 System Requirements

3.1 Linux/x86

3.2 Linux/Itanium

VirtualGL should build and run on Itanium Linux, but it has not been thoroughly tested. Contact us if you encounter any difficulties.

3.3 Solaris/Sparc

3.4 Solaris/x86

3.5 Windows

4 Installing the VirtualGL Server and Direct Mode Client on Linux

Installing TurboJPEG

1. Obtain the latest TurboJPEG RPM from the “Files” area of http://sourceforge.net/projects/virtualgl.

   .tgz packages are provided for users of non-RPM platforms. You can use alien to convert these into .deb packages if you prefer.

2. Log in as root, cd to the directory where you downloaded the RPM package, and issue the following command:

   rpm -Uvh turbojpeg*.rpm


Installing VirtualGL

1. If you are using RedHat/CentOS Enterprise Linux 2.1, 3, or 4 or SuSE Linux 9, obtain one of the pre-built VirtualGL RPMs from the files area of http://sourceforge.net/projects/virtualgl.

   The Enterprise Linux 2.1 RPM should (theoretically) also work with RedHat Linux 7.2 and 7.3 (and maybe 7.1 if patched.)
   The Enterprise Linux 3 RPM should (theoretically) also work with RedHat Linux 8 (patched), RedHat Linux 9, and Fedora Core 1 & 2.
   The Enterprise Linux 4 RPM should (theoretically) also work with Fedora Core 3 & 4.
   The SuSE Linux 9 RPM should (theoretically) also work with SuSE 10.
2. Log in as root, cd to the directory where you downloaded the RPM package, and issue the following command:

   rpm -Uvh VirtualGL*.rpm


Installing VirtualGL from Source

If you are using an RPM-based distribution of Linux but there isn’t a pre-built VirtualGL RPM that matches your distribution, then you can build your own RPM using the VirtualGL Source RPM (SRPM.)

1. Obtain the VirtualGL SRPM from the files area of http://sourceforge.net/projects/virtualgl.
2. Log in as root, cd to the directory where you downloaded the SRPM, and issue the following commands:

   rpm -i VirtualGL*.src.rpm
   cd /usr/src/redhat/SPECS
   rpmbuild -ba virtualgl.spec


   On SuSE, cd to /usr/src/packages/SPECS instead. Some versions of SuSE symlink this to /usr/src/redhat/SPECS.

3. Sit back and watch the fun.
4. If the build completes successfully, it will produce a binary RPM in /usr/src/redhat/RPMS/{your_cpu_architecture} (or /usr/src/packages/RPMS/{your_cpu_architecture}), which you can install using the instructions from the previous section.

If you are using a non-RPM based distribution of Linux, then log in as root, download the VirtualGL source tarball from the files area of http://sourceforge.net/projects/virtualgl, uncompress it, cd vgl, and type make install. Refer to BUILDING.txt in the source directory for further details.

NVidia driver permissions

If installing VirtualGL on a server which is running version 1.0-71xx or earlier of the NVidia accelerated GLX drivers, follow the instructions in /usr/share/doc/NVIDIA_GLX-1.0/README regarding setting the appropriate permissions for /dev/nvidia*. This is not necessary with more recent versions of the driver. cat /proc/driver/nvidia/version to determine which version of the NVidia driver is installed on your system.

4.1 Granting VirtualGL Access to the Server’s X Display

VirtualGL requires access to the server’s 3D graphics card so that it can create off-screen pixel buffers (Pbuffers) and redirect the 3D rendering from applications into these Pbuffers. Unfortunately, accessing a 3D graphics card on Linux currently requires going through an X server. So the only way to share the server’s 3D graphics resources among multiple users is to grant those users display access to the X server that is running on the shared 3D graphics card.

It is important to understand the security risks associated with this. Once X display access is granted to a user, there is nothing preventing that user from logging keystrokes or reading back images from the X display. Using xauth, one can obtain “untrusted” X authentication keys which prevent such exploits, but unfortunately, those untrusted keys also disallow access to the 3D hardware. So it is necessary to grant full trusted X access to any users that will need to run VirtualGL. Unless you fully trust the users to whom you are granting this access, you should avoid logging in locally to the server’s X display as root unless absolutely necessary. Even then, it’s probably a good idea to make sure that there are no suspicious-looking processes running on the system prior to logging in.

This section will explain how to configure a VirtualGL server such that select users can run VirtualGL, even if the server is sitting at the login prompt. The basic idea is to call a script (vglgenkey) from the display manager’s startup script. vglgenkey invokes xauth to generate an authorization key for the server’s X display, and it stores this key under /etc/opt/VirtualGL. The VirtualGL launcher script (vglrun) then attempts to read this key and merge it into the user’s .Xauthority file, thus granting the user access to the server’s X display. Therefore, you can control who has access to the server’s X display simply by controlling who has read access to the /etc/opt/VirtualGL directory.

If you prefer, you can also grant access to every authenticated user on the server by replacing the references to vglgenkey below with xhost +localhost.

1. If the server machine is configured to boot into runlevel 5 (graphical login), then temporarily shut down its X server by issuing

   init 3


   as root
2. Log in as root from the text console.
3. Create a new group called vglusers and add any users that need to run VirtualGL to this group.
4. Create a new directory /etc/opt/VirtualGL and make it readable by the vglusers group, e.g.:

   mkdir -p /etc/opt/VirtualGL
   chgrp vglusers /etc/opt/VirtualGL
   chmod 750 /etc/opt/VirtualGL


5. If the server machine is configured to boot into runlevel 3 (text login), then configure it to boot into a graphical login by changing the first line of /etc/inittab from

   id:3:initdefault:

   to

   id:5:initdefault:
6. Add

   vglgenkey


   at the top of the display manager’s startup script. The location of this script varies depending on the particular Linux distribution and display manager being used. The following table lists some common locations for this file:



   	xdm or kdm	gdm (default display manager on most Linux systems)
   RedHat 7/8/9 Enterprise Linux 2.1/3	/etc/X11/xdm/Xsetup_0 (replace “0” with the display number of the X server you are configuring)	/etc/X11/gdm/Init/Default (usually this is just symlinked to /etc/X11/xdm/Xsetup_0)
   Enterprise Linux 4 Fedora Core 1/2/3	/etc/X11/xdm/Xsetup_0 (replace “0” with the display number of the X server you are configuring)	/etc/X11/gdm/Init/:0 (usually this is just symlinked to /etc/X11/xdm/Xsetup_0)
   SuSE/United Linux	/etc/X11/xdm/Xsetup	/etc/opt/gnome/gdm/Init/Default

7. If the server is running gdm (the factory default on most Linux systems), then you’ll need to set up gdm to allow TCP connections to the X server. To do this, edit the gdm.conf file and add the following line under the [security] section (or change it if it already exists):

   DisallowTCP=false


   See the table below for the location of gdm.conf on various systems.
8. Unless you know that you absolutely need it, disable the XTEST extension. Disabling XTEST will not prevent a user from logging keystrokes or reading images from the X display, but it will prevent them from inserting key and mouse events and thus hijacking a local X session.

   Disabling XTEST is accomplished by passing an argument of -tst on the command line used to launch the X server. The location of this command line varies depending on the particular Linux distribution and display manager being used. The following table lists some common locations:



   	xdm	gdm (default on most Linux systems)	kdm
   RedHat (or equivalent)	/etc/X11/xdm/Xservers	/etc/X11/gdm/gdm.conf	/etc/X11/xdm/Xservers
   SuSE/United Linux	/etc/X11/xdm/Xservers	/etc/opt/gnome/gdm/gdm.conf	/etc/opt/kde3/share/config/kdm/Xservers


   For xdm-style configuration files, add -tst to the line corresponding to the display number you are configuring, e.g.:

   :0 local /usr/X11R6/bin/X :0 vt07 -tst


   For gdm-style configuration files, add -tst to all lines that appear to be X server command lines, e.g.:

   StandardXServer=/usr/X11R6/bin/X -tst


   [server-Standard]
   command=/usr/X11R6/bin/X -tst -audit 0


   [server-Terminal]
   command=/usr/X11R6/bin/X -tst -audit 0 -terminate


   [server-Chooser]
   command=/usr/X11R6/bin/X -tst -audit 0


9. Restart the X server by issuing

   init 5


   as root.
10. You can check your work by running

    xauth merge /etc/opt/VirtualGL/vgl_xauth_key
    xdpyinfo -display :0


    In particular, make sure that XTEST doesn’t show up in the list of extensions if you disabled it above. If xdpyinfo fails to run, then the permissions on Display :0 are probably still too restrictive, meaning that the change in Step 6 didn’t take for some reason.

4.2 Automatically Starting the VirtualGL Client

The VirtualGL Direct Mode client for Linux can be configured to start automatically whenever an X Windows session starts. To do this, run

vglclient_config -install

as root.

Depending on your system configuration, this script will either tweak the /etc/X11/xinit/xinitrc file or create a link in /etc/X11/xinit/xinitrc.d so that the VirtualGL client will be automatically started whenever any X Windows session is started. Running vglclient_config -install also adds a line to /etc/X11/gdm/PostSession/Default (or the equivalent for your system) to terminate the client whenever you log out of the X Windows session. This is known to work on RedHat- and SuSE-compatible platforms that use the Gnome Display Manager (gdm.) It probably won’t work on other distributions and display managers.

To remove the auto-start feature, run

vglclient_config -remove

as root.

If vglclient_config doesn’t work on your system, then you can edit the appropriate X11 session files so that

/usr/bin/vglclient_daemon start

runs whenever an X session starts and

/usr/bin/vglclient_daemon stop

runs whenever the session terminates.

vglclient_daemon will only start vglclient if it is not already running, so starting the client in this manner guarantees that there will never be more than one copy of it running on the system. vglclient_daemon should work on any Linux platform that conforms to the Linux Standard Base (LSB.)

If additional X displays are started by the same user (:1, :2, etc.), this will not cause additional VirtualGL client instances to start. Only one VirtualGL client instance is needed to talk to all active displays. However, it is important to note that all active displays on the client machine need to be running under the same user privileges as the VirtualGL client, or they need to grant permissions to localhost (xhost +localhost) so that the VirtualGL client can access them.

If you wish to change the default port that the client listens on, you will need to edit /usr/bin/vglclient_daemon and pass the appropriate argument (-port <port number> or -sslport <port number>) on the vglclient command line located in that file. By default, the client will listen on port 4242 for unencrypted connections and port 4243 for SSL connections.

4.3 Uninstalling

As root, issue the following command:

rpm -e VirtualGL

5 Installing the VirtualGL Server and Direct Mode Client on Solaris

1. Obtain the latest VirtualGL package from the files area of http://sourceforge.net/projects/virtualgl.
2. Log in as root, cd to the directory where you downloaded the package, and issue the following commands:

   bzip2 -d SUNWvgl-{version}.pkg.bz2
   pkgadd -d SUNWvgl-{version}.pkg


3. Select the SUNWvgl package (usually option 1) from the menu.

Device Permissions

1. Edit /etc/logindevperm and comment out the “frame buffers” line, e.g.:

   # /dev/console    0600    /dev/fbs/*              # frame buffers


2. Change the permissions and group for /dev/fbs/* to allow write access to anyone who will need to use VirtualGL, e.g.:

   chmod 660 /dev/fbs/*
   chown root /dev/fbs/*
   chgrp vglusers /dev/fbs/*


Other

The server’s SSh daemon should have the X11Forwarding option enabled. This is configured in sshd_config, the location of which varies depending on your distribution of SSh. Solaris 10 generally keeps this in /etc/ssh, whereas Blastwave keeps it in /opt/csw/etc and SunFreeware keeps it in /usr/local/etc.

5.1 Granting VirtualGL Access to the Server’s X Display

VirtualGL requires access to the server’s 3D graphics card so that it can create off-screen pixel buffers (Pbuffers) and redirect the 3D rendering from applications into these Pbuffers. Unfortunately, accessing a 3D graphics card on Solaris/x86 systems or on Solaris/Sparc systems without GLP requires going through an X server. On such systems, the only way to share the server’s 3D graphics resources among multiple users is to grant those users display access to the X server that is running on the shared 3D graphics card.

It is important to understand the security risks associated with this. Once X display access is granted to a user, there is nothing preventing that user from logging keystrokes or reading back images from the X display. Using xauth, one can obtain “untrusted” X authentication keys which prevent such exploits, but unfortunately, those untrusted keys also disallow access to the 3D hardware. So it is necessary to grant full trusted X access to any users that will need to run VirtualGL. Unless you fully trust the users to whom you are granting this access, you should avoid logging in locally to the server’s X display as root unless absolutely necessary. Even then, it’s probably a good idea to make sure that there are no suspicious-looking processes running on the system prior to logging in.

This section will explain how to configure a VirtualGL server such that select users can run VirtualGL, even if the server is sitting at the login prompt. The basic idea is to call a script (vglgenkey) from the display manager’s startup script. vglgenkey invokes xauth to generate an authorization key for the server’s X display, and it stores this key under /etc/opt/VirtualGL. The VirtualGL launcher script (vglrun) then attempts to read this key and merge it into the user’s .Xauthority file, thus granting the user access to the server’s X display. Therefore, you can control who has access to the server’s X display simply by controlling who has read access to the /etc/opt/VirtualGL directory.

If you prefer, you can also grant access to every authenticated user on the server by replacing the references to vglgenkey below with xhost +localhost.

If your system is using dtlogin as a display manager:

1. Log in as root.
2. Create a new group called vglusers and add any users that need to run VirtualGL to this group.
3. Create a new directory /etc/opt/VirtualGL and make it readable by the vglusers group, e.g.:

   mkdir -p /etc/opt/VirtualGL
   chgrp vglusers /etc/opt/VirtualGL
   chmod 750 /etc/opt/VirtualGL


4. Temporarily shut down dtlogin by issuing

   /etc/init.d/dtlogin stop


5. If the /etc/dt/config directory does not exist, create it.

   mkdir -p /etc/dt/config


6. If /etc/dt/config/Xsetup does not exist, then copy the default Xsetup file from /usr/dt/config to that location:

   cp /usr/dt/config/Xsetup /etc/dt/config/Xsetup


7. Edit /etc/dt/config/Xsetup, and add the following lines to the bottom of the file:

   /opt/SUNWvgl/bin/vglgenkey


8. If /etc/dt/config/Xconfig does not exist, then copy the default Xconfig file from /usr/dt/config to that location:

   cp /usr/dt/config/Xconfig /etc/dt/config/Xconfig


9. Edit /etc/dt/config/Xconfig, and add (or uncomment) the following line:

   Dtlogin*grabServer: False


   Explanation

   The Dtlogin*grabServer option restricts X display access to only the dtlogin process. This is an added security measure, since it prevents a user from attaching any kind of sniffer program to the X display even if they have display access. But Dtlogin*grabServer also prevents VirtualGL from using the X display to access the 3D graphics hardware, so this option must be disabled for VirtualGL to work properly.

   If the system you are configuring as a VirtualGL server is also being used as a Sun Ray server, then make these same modifications to /etc/dt/config/Xconfig.SUNWut.prototype. Otherwise, the modifications you just made to /etc/dt/config/Xconfig will be overwritten the next time the system is restarted.

10. Unless you know that you absolutely need it, disable the XTEST extension. Disabling XTEST will not prevent a user from logging keystrokes or reading images from the X display, but it will prevent them from inserting key and mouse events and thus hijacking a local X session.
    1. If /etc/dt/config/Xservers does not exist, then copy the default Xservers file from /usr/dt/config to that location:

       cp /usr/dt/config/Xservers /etc/dt/config/Xservers


    2. Edit /etc/dt/config/Xservers and add an argument of -tst to the line corresponding to the display number you are configuring, e.g.:

       :0  Local local_uid@console root /usr/openwin/bin/Xsun :0 -nobanner -tst


       If the system you are configuring as a VirtualGL server is also being used as a Sun Ray server, then make these same modifications to /etc/dt/config/Xservers.SUNWut.prototype. Otherwise, the modifications you just made to /etc/dt/config/Xservers will be overwritten the next time the system is restarted.

11. Verify that /etc/dt/config and /etc/dt/config/Xsetup can be executed by all users, and verify that /etc/dt/config/Xconfig and /etc/dt/config/Xservers can be read by all users.
12. Restart the X server by issuing

    /etc/init.d/dtlogin start


13. You can check your work by running

    /usr/openwin/bin/xauth merge /etc/opt/VirtualGL/vgl_xauth_key
    /usr/openwin/bin/xdpyinfo -display :0


    In particular, make sure that XTEST doesn’t show up in the list of extensions if you disabled it above. If xdpyinfo fails to run, then the permissions on Display :0 are probably still too restrictive, meaning that the change in Step 7 didn’t take for some reason.

If your system is using gdm as a display manager (Solaris 10 or later):

1. Log in as root.
2. Create a new group called vglusers and add any users that need to run VirtualGL to this group.
3. Create a new directory /etc/opt/VirtualGL and make it readable by the vglusers group, e.g.:

   mkdir -p /etc/opt/VirtualGL
   chgrp vglusers /etc/opt/VirtualGL
   chmod 750 /etc/opt/VirtualGL


4. Temporarily shut down gdm by issuing

   svcadm disable gdm2-login


5. Add

   /opt/SUNWvgl/bin/vglgenkey


   to the top of the /etc/X11/gdm/Init/Default file.
6. Edit /etc/X11/gdm/gdm.conf and add the following line under the [security] section (or change it if it already exists):

   DisallowTCP=false


7. Unless you know that you absolutely need it, disable the XTEST extension. Disabling XTEST will not prevent a user from logging keystrokes or reading images from the X display, but it will prevent them from inserting key and mouse events and thus hijacking a local X session.

   Edit /etc/X11/gdm/gdm.conf and add -tst to all lines that appear to be X server command lines, e.g.:

   StandardXServer=/usr/X11R6/bin/Xorg -tst


   [server-Standard]
   command=/usr/X11R6/bin/Xorg -tst -audit 0


   [server-Terminal]
   command=/usr/X11R6/bin/Xorg -tst -audit 0 -terminate


   [server-Chooser]
   command=/usr/X11R6/bin/Xorg -tst -audit 0


8. Restart gdm by issuing

   svcadm enable gdm2-login


9. You can check your work by running

   /usr/openwin/bin/xauth merge /etc/opt/VirtualGL/vgl_xauth_key
   /usr/openwin/bin/xdpyinfo -display :0


   In particular, make sure that XTEST doesn’t show up in the list of extensions if you disabled it above. If xdpyinfo fails to run, then the permissions on Display :0 are probably still too restrictive, meaning that the change in Step 5 didn’t take for some reason.

5.2 Uninstalling

As root, issue the following command:

pkgrm SUNWvgl

Answer “yes” when prompted.

6 Installing the VirtualGL Direct Mode Client on Windows

1. Download the latest VirtualGL installer package from the files area of http://sourceforge.net/projects/virtualgl. The installer will usually be named VirtualGL-{version}.exe.
2. Run the VirtualGL installer. The installation of VirtualGL should be self-explanatory. The only configuration option is the directory in which you want the files to be installed.
3. Install Hummingbird Exceed if it isn’t already installed.
4. Add the Exceed path (e.g. C:\Program Files\Hummingbird\Connectivity\9.00\Exceed) to your system PATH environment if it isn’t already there.
5. Load Exceed XConfig (right-click on the Exceed taskbar icon, then select Tools–>Configuration.)
6. Open the “X Server Protocol” applet in XConfig.

   If you are using the “Classic View” mode of XConfig, open the “Protocol” applet instead.

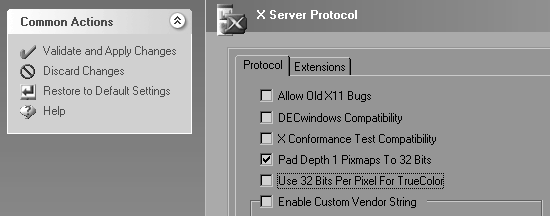

7. In the “X Server Protocol” applet, select the “Protocol” tab and make sure that “Use 32 bits per pixel for true color” is not checked.


8. Click “Validate and Apply Changes.” If XConfig asks whether you want to perform a server reset, click “Yes.”
9. Open the “Other Server Settings” applet in XConfig.

   If you are using the “Classic View” mode of XConfig, open the “Performance” applet instead.

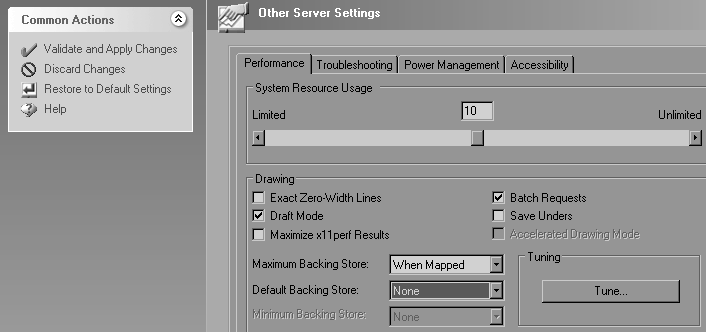

10. Select the “Performance” tab and make sure that “Default Backing Store” is set to “None.”


11. Click “Validate and Apply Changes.” If XConfig asks whether you want to perform a server reset, click “Yes.”

6.1 Obtaining Optimal Performance with Exceed

VirtualGL has the ability to take advantage of the MIT-SHM extension in Hummingbird Exceed to accelerate image drawing on Windows. This can improve the overall performance of the VirtualGL pipeline by as much as 20% in some cases.

The bad news is that this extension has some issues in earlier versions of Exceed. If you are using Exceed 8 or 9, you will need to obtain the following patches from the Hummingbird support site:

No patches should be necessary for Exceed 10 and above.

Next, you need to enable the MIT-SHM extension in Exceed:

1. Load Exceed XConfig (right-click on the Exceed taskbar icon, then select Tools–>Configuration.)
2. Open the “X Server Protocol” applet in XConfig.

   If you are using the “Classic View” mode of XConfig, open the “Protocol” applet instead.

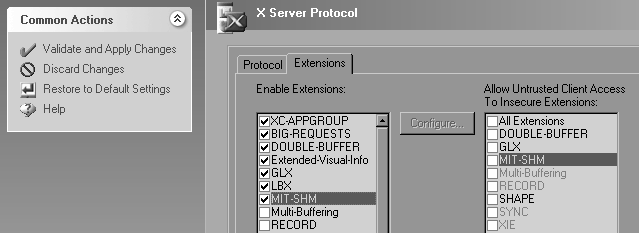

3. Select the “Extensions” tab and make sure that “MIT-SHM” is checked.


4. Click “Validate and Apply Changes.” If XConfig asks whether you want to perform a server reset, click “Yes.”

6.2 Secure Shell

It is recommended that you use SSh (Secure Shell) to log in to the application server and launch applications. Some servers are configured to allow telnet and RSh access, but telnet and RSh both send passwords unencrypted over the network and are thus being phased out in favor of SSh. If Cygwin is already installed on your Windows VirtualGL client machine, then you can use the SSh client included in Cygwin. Otherwise, download and install PuTTY.

6.3 Installing the VirtualGL Client as a Windows Service

The VirtualGL Windows Client can be installed as a Windows service (and subsequently removed) using the links provided in the “VirtualGL Client” start menu group. Once installed, the service can be started from the Services applet in the Control Panel (located under “Administrative Tools”) or by invoking

net start vglclient

from a command prompt. The service can be subsequently stopped by invoking

net stop vglclient

If you wish to install the client as a service and have it listen on a port other than the default (4242 for unencrypted connections or 4243 for SSL connections), then you will need to install the service manually from the command line.

vglclient -?

gives a list of the relevant command-line options.

7 Using VirtualGL in Direct Mode

7.1 Linux or Solaris Client

1. If you have not installed the VirtualGL client as a service or if your client is a Solaris machine, then you will need to start the client manually. To do this, run

   vglclient


   on Linux or

   /opt/SUNWvgl/bin/vglclient


   on Solaris.
2. Open a Secure Shell (SSh) session into the application server:

   ssh -X -l {your_user_name} {server_machine_name_or_IP}


3. In the SSh session, set the VGL_CLIENT environment variable on the server to point back to the client’s X display. e.g.:

   export VGL_CLIENT={client_machine_name_or_IP}:0.0


   or

   setenv VGL_CLIENT {client_machine_name_or_IP}:0.0


4. In the SSh session, launch your 3D application using:

   vglrun [vglrun options] {application_executable_or_script} {arguments}


   if the application server is running Linux or

   /opt/SUNWvgl/bin/vglrun [vglrun options] {application_executable_or_script} {arguments}


   if the application server is running Solaris.

   Consult Section 18 for more information on vglrun command line options.

Direct X11 Connections

You may have noticed that the procedure above enables forwarding of the X11 traffic over the SSh connection. You can also use VirtualGL with a direct X11 connection, if you prefer, and grant the application server access to the client machine’s X server using xhost or xauth. We have never observed any performance benefit or other benefit to using a direct X11 connection, however. Additionally, some newer Linux distributions ship with X11 TCP connections disabled, and thus using direct X11 connections is not possible with such systems without reconfiguring them. If you do choose to use a direct X11 connection, then set the DISPLAY environment variable in step 3 rather than VGL_CLIENT.

7.2 Windows Client

1. If you have not installed the VirtualGL client as a service, then you will need to start the client manually. To do this, use the link provided in the VirtualGL Client start menu group.

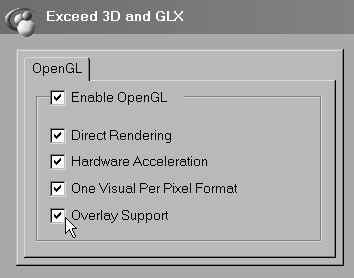

2. Make sure that Exceed is running.
3. Open a command prompt
4. Set the DISPLAY environment to whichever display Exceed is occupying, e.g.:

   set DISPLAY=localhost:0.0


   If you don’t anticipate the need to launch multiple Exceed sessions, then you can set this environment variable globally (Control Panel–>System–>Advanced.)

5. Open a Secure Shell (SSh) connection to the application server:

   CygWin users

   Open a new command prompt and type:

   ssh -X -l {your_user_name} {server_machine_name_or_IP}


   PuTTY users

   Open a new command prompt and type:

   putty -X -l {your_user_name} {server_machine_name_or_IP}


   … or …



   1. Launch PuTTY.
   2. Select the Connection–>SSH–>Tunnels category.

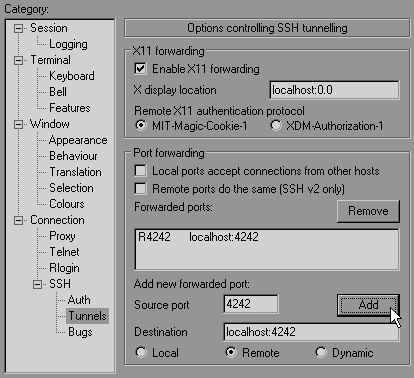

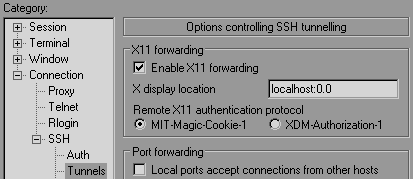

   3. Check “Enable X11 forwarding” and set the “X display location” to localhost:0.0 or to whichever display number that Exceed is occupying.


   4. Select the “Session” category.

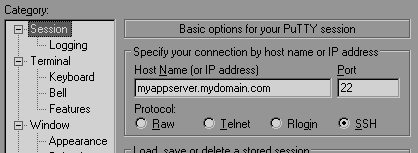

   5. Set the “Protocol” to “SSH,” then enter the host name or IP address of the application server.


   6. Click “Open”

6. In the remote shell session, set the VGL_CLIENT environment variable on the server to point back to the client machine:

   export VGL_CLIENT={client_machine_name_or_IP}:0.0


   or

   setenv VGL_CLIENT {client_machine_name_or_IP}:0.0


7. In the SSh session, launch your 3D application:

   vglrun [vglrun options] {application_executable_or_script} {arguments}


   if the application server is running Linux or

   /opt/SUNWvgl/bin/vglrun [vglrun options] {application_executable_or_script} {arguments}


   if the application server is running Solaris.

   Consult Section 18 for more information on vglrun command line options.

Direct X11 Connections

You may have noticed that the procedure above enables forwarding of the X11 traffic over the SSh connection. You can also use VirtualGL with a direct X11 connection, if you prefer, and grant the application server access to the X display using the “Security” applet in Exceed XConfig. We have never observed any performance benefit or other benefit to using a direct X11 connection, however. If you do choose to use a direct X11 connection, then set the DISPLAY environment variable in step 6 rather than VGL_CLIENT.

7.3 Troubleshooting

It is generally a good idea to make sure that a regular X application (such as xterm) can be remotely displayed from the application server to your client workstation prior to attempting to run VirtualGL.

8 Securing Direct Mode

8.1 Built-In SSL Encryption

VirtualGL has built-in support for encrypting its compressed image stream inside a Secure Socket Layer (SSL.) For performance reasons, this feature is not enabled by default, but it can easily be enabled. On the server, set the environment variable VGL_SSL to 1 prior to launching the application, or pass an argument of +s to vglrun. No action is required on the client. The client will automatically accept SSL or unencrypted connections, unless you have configured it otherwise (see Section 18 for more details.)

8.2 Direct Mode over SSh

So what if your only path into the network is through SSh, perhaps through a single “gateway” machine. No problem, because SSh allows you to tunnel both incoming and outgoing TCP/IP connections on any port from one machine to another. Tunneling VirtualGL’s compressed image stream through SSh will not be as fast as using the built-in SSL encryption capabilities of VirtualGL, but sometimes it’s the only option available.

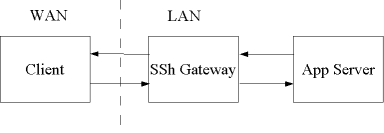

Let’s assume the following configuration:

What we want to do is tunnel both the X11 protocol stream and VirtualGL’s compressed image stream through SSh. Here’s one way to do it:

1. Start the VirtualGL client
2. If the client machine is running Windows,
   1. Start Exceed
   2. Open a console and type

      set DISPLAY=localhost:0.0


      (replace “:0.0” with whatever display number Exceed is parking on.)
3. In that same console:

   ssh -X -R 4242:localhost:4242 username@ssh_gateway_machine


   This tells SSh to tunnel all X11 traffic from your session on ssh_gateway_machine to your client’s display, and additionally it will tunnel all outbound traffic to port 4242 on ssh_gateway_machine to inbound port 4242 on your client machine.

   This command line also works with PuTTY. Just replace “ssh” with the path to the PuTTY executable. You can also configure the same thing through the PuTTY GUI as follows:



4. Now you should have a terminal session open into ssh_gateway_machine. Inside this session, issue the following command:

   ssh -X -R 4242:localhost:4242 username@app_server_machine


   This tells SSh to tunnel all X11 traffic from your session on app_server_machine to your session on ssh_gateway_machine, where it will be re-tunneled to the client display. Additionally, all outbound traffic to port 4242 on app_server_machine will be tunneled to port 4242 on ssh_gateway_machine, which will then re-tunnel the traffic to inbound port 4242 on your client machine.
5. You should now have a terminal session open into app_server_machine. Inside that session, set the environment variable VGL_CLIENT to localhost:n.0, where n is the display number of the X server running on the Client machine.
6. vglrun your application.

You can of course replace port 4242 in all of the steps above with whatever port you choose, but make sure that if you change the port, you configure both the client and server to talk on the port you choose (using the -port argument to vglclient as well as the VGL_PORT environment variable on the server.)

9 Using VirtualGL in Raw Mode with VNC and Other X Proxies

Referring to Section 2, Raw Mode is a mode in which VirtualGL bypasses its own image compressor and instead draws the rendered 3D images as uncompressed bitmaps into an X proxy. In this mode, VirtualGL relies on the X proxy to do the job of compressing and delivering images to the client(s).

Advantages of using VirtualGL with an X proxy:

• X proxies eliminate the need to send X11 traffic over the network, thus they can provide reasonable remote display performance on low-bandwidth, high-latency connections (such as broadband or long-haul T1 lines.) The application GUI will load and render much faster (perhaps even orders of magnitude faster) with an X proxy than with remote X11 on such connections.
• Some X proxies (such as VNC) provide rudimentary collaboration capabilities. Multiple clients can simultaneously view the same server session and pass around control of the keyboard and mouse.
• The client is stateless. If the network hiccups or the client is otherwise disconnected, the session remains running on the server and can be rejoined from any machine on the network.
• X proxies sometimes provide clients for platforms (such as PDA’s, etc.) that VirtualGL doesn’t support.
• No X server is required on the client machine. This reduces the deployment cost and complexity for Windows clients.

Disadvantages of using VirtualGL with an X proxy:

• Performance. Most X proxies are simply not capable of streaming full-screen video at interactive frame rates, and thus on faster networks they fall far short of the performance of Direct Mode. TurboVNC (see below) is meant to address this problem, at least in part.
• With the exception of TurboVNC, X proxies lack double buffering support.
• With the exception of NX, X proxies generally do not provide seamless windows. Rather than each application window appearing as a separate client window, the entire server desktop appears in a single client window.
• X proxies require more server resources, both because they have to compress more pixels (an entire desktop rather than a single window) and because 2D (X11) rendering occurs on the server rather than the client.
• X proxies cannot be used with advanced OpenGL features, such as stereo or overlays.

When an X proxy session is started on the server, it generally chooses a unique display number (such as :1, :2, etc.) and starts a customized X server on that display number. This customized X server renders all graphical output from the application into a bitmap in memory, which it then compresses and sends to the client(s). The proxy may or may not even implement the GLX extension (VNC does not), and thus it might not have any native ability to run OpenGL applications. But since VirtualGL is designed to intercept and hand off all GLX commands to the hardware-accelerated root display (usually display :0), VirtualGL can be used as a “3D to 2D converter” to allow 3D apps to run within VNC or another X11 proxy that doesn’t natively support GLX.

9.1 TurboVNC

TurboVNC is essentially just a version of TightVNC with optimizations to make it perform at peak efficiency with full-screen video workloads (which is, in a nutshell, what VirtualGL produces.) These optimizations include:

• Using VirtualGL’s high-performance JPEG codec (TurboJPEG) to handle tight JPEG encoding
• Using only JPEG and Full color encoding (mono, gradient, and indexed encoding are disabled.) High-performance JPEG encoding is used in all cases except for very small image tiles for which using full color (raw) encoding is more efficient due to JPEG’s compression overhead.
• Using the optimized tight protocol whenever possible. Other VNC protocols (ZRLE, Hextile, etc.) are available on the server so that it can talk to non-TurboVNC clients. But if a TurboVNC client connects to a TurboVNC server, they will both use optimized tight encoding at all times.
• Protocol tweaks to allow some stages of the VNC pipeline to occur in parallel. This particularly improves performance on low-bandwidth (broadband) connections.

Other notable differences between TurboVNC and TightVNC:

• The compression level and quality parameters have been changed as follows:

  Compression Level = 0 for 4:4:4 subsampling, 1 for 4:1:1 subsampling, or 2 for 4:2:2 subsampling
  Quality = 0 to 100 (JPEG quality level)


• The TurboVNC client supports double buffering. This is enabled by default but can be disabled by passing an argument of -singlebuffer to vncviewer (or selecting the corresponding option in the configuration GUI.)


• The TurboVNC client adds a special mode which optimizes the client/server interaction to improve performance on high-latency networks. Normally, the VNC client will wait until one screen update has finished drawing before requesting the next one. Enabling TurboVNC’s high-latency network mode causes the client to send a request for the next frame while it is drawing the current one. This mode decreases performance on local-area networks and is thus not enabled by default, but it can be enabled by passing an argument of -wan to vncviewer (or selecting the corresponding option in the configuration GUI.)

On a local area network, TurboVNC + VirtualGL in Raw Mode can generally produce levels of performance within 80-90% of VirtualGL in Direct Mode. On a wide-area network, TurboVNC wins hands down. Direct Mode is still preferable if a seamless user experience is a requirement and if performance is critical. But if a bit of performance can be sacrificed and if collaboration and a stateless client are more important features than seamless windows, then VirtualGL+TurboVNC would be the appropriate solution. In the long term, we are looking for a way to combine the best of both solutions into one. But such is not an easy problem to solve …

TurboVNC allows VirtualGL to be used with respectable performance over low-bandwidth/high-latency networks, such as broadband or satellite. As with VirtualGL’s direct mode, the quality and subsampling of TurboVNC’s JPEG image stream can be adjusted to reduce the size of the image stream without reducing the number of image colors. TurboVNC provides a preset mode for broadband connections, which sets the quality to a low level that is noticeably lossy but still quite usable. It should be possible to redraw a 1280x1024 window at greater than 10 frames/second on a standard cable modem connection using this preset mode.

For instructions on the usage of TurboVNC, please refer to the TurboVNC man pages:

On Linux:

man -M /opt/TurboVNC/man {vncserver | Xvnc | vncviewer | vncconnect | vncpasswd}

On Solaris:

man -M /opt/SUNWtvnc/man {vncserver | Xvnc | vncviewer | vncconnect | vncpasswd}

On Windows, use the embedded help feature (the question mark button in the upper right of the window.)

The TightVNC documentation:

http://www.tightvnc.com/docs.html

might also be helpful, since TurboVNC is based on TightVNC and shares many of its features.

9.2 Enabling Raw Mode

Raw mode is automatically enabled if VirtualGL detects that it is running on the same machine as the X server, which it assumes to be the case if the X display name begins with a colon (“:”) or with “unix:”. In most cases, this will cause VirtualGL to automatically use raw mode when it is launched in an X proxy environment such as VNC or NX. But you can manually enable Raw Mode by setting the VGL_COMPRESS environment variable to 0 on the server or passing an argument of -c 0 to vglrun (see Section 18 for more details.) Make sure that the DISPLAY variable points to whatever display number that VNC (or your X proxy of choice) is occupying (e.g. :1, :2, etc.)

10 vglrun and Solaris Shell Scripts

vglrun can be used to launch either binary executables or shell scripts, but there are a few things to keep in mind when using vglrun to launch a shell script on Solaris. When you vglrun a shell script, the VirtualGL faker library will be preloaded into every executable that the script launches. Normally this is innocuous, but if the script calls any executables that are setuid root, then Solaris will refuse to load those executables because you are attempting to preload a library (VirtualGL) that is not in a “secure path.” Solaris keeps a tight lid on what goes into /usr/lib and /lib, and by default, it will only allow libraries in those paths to be preloaded into an executable that is setuid root. Generally, 3rd party packages are verboden from installing anything into /usr/lib or /lib. But you can use the crle utility to add other directories to the operating system’s list of secure paths. In the case of VirtualGL, you would issue (as root):

crle -u -s /opt/SUNWvgl/lib
crle -64 -u -s /opt/SUNWvgl/lib/64

But please be aware of the security ramifications of this before you do it. You are essentially telling Solaris that you trust the security and stability of the VirtualGL code as much as you trust the security and stability of the operating system. And while we’re flattered, we’re not sure that we’re necessarily deserving of that accolade, so if you are in a security critical environment, apply the appropriate level of paranoia here.

An easier and perhaps more secure approach is to simply edit the application script and have it issue vglrun only for the executables that you wish to run in the VirtualGL environment. But sometimes that is not an option.

vglrun on Solaris has two options that are relevant to launching scripts:

vglrun -32 {script}

will preload VirtualGL only into 32-bit executables called by a script, whereas

vglrun -64 {script}

will preload VirtualGL only into 64-bit executables.

11 GLP: Using VirtualGL Without an X Server on the Server Machine

Sun Microsystems has developed an extension to OpenGL called GLP which allows an application to directly access the rendering capabilities of a 3D graphics card even if there is no X server running on the card. Apart from greatly simplifying the process of setting up VirtualGL on a server, GLP also greatly improves the overall security of VirtualGL servers, since it is no longer necessary to grant every user access to display :0. In addition, GLP makes it quite simple to assign VirtualGL jobs to any graphics pipe in a multi-pipe system.

Version 2.0 of VirtualGL for Sparc/Solaris can use GLP if it is available. Currently, GLP is available only in Sun OpenGL 1.5 for Sparc/Solaris.

See http://www.opengl.org/about/arb/meeting_notes/notes/glP_presentation.pdf for more details on GLP.

If GLP is supported on your application server, it can be enabled by passing an argument of -d glp to vglrun, e.g.:

/opt/SUNWvgl/bin/vglrun -d glp {application_executable_or_script} {arguments}

This will tell the VirtualGL faker to enable GLP mode and select the first available GLP device. You can also set the VGL_DISPLAY environment variable to glp to achieve the same effect:

export VGL_DISPLAY=glp
/opt/SUNWvgl/bin/vglrun {application_executable_or_script} {arguments}

Additionally, you can specify a specific GLP device to use for rendering:

export VGL_DISPLAY=/dev/fbs/jfb0
/opt/SUNWvgl/bin/vglrun {application_executable_or_script} {arguments}

12 Using VirtualGL with Applications That Manually Load OpenGL

The lion’s share of OpenGL applications are dynamically linked against libGL.so, and thus libGL.so is automatically loaded whenever the application loads. Whenever vglrun is used to launch such applications, VirtualGL is loaded ahead of libGL.so, meaning that OpenGL and GLX symbols are resolved from VirtualGL first and the “real” OpenGL library second.

However, some applications (particularly games) are not dynamically linked against libGL.so. These applications typically call dlopen() and dlsym() later on in the program’s execution to manually load OpenGL and GLX symbols from libGL.so. Such applications also generally provide a mechanism (usually either an environment variable or a command line argument) which allows the user to specify a library that can be loaded instead of libGL.so.

So let’s assume that you just downloaded the latest version of the Linux game Foo Wars from the Internet, and (for whatever reason) you want to run the game in a VNC session. The game provides a command line switch -g which can be used to specify an OpenGL library to load other than libGL.so. You would launch the game using a command line such as this:

vglrun foowars -g /usr/lib/librrfaker.so

You still need to use vglrun to launch the game, because VirtualGL must also intercept a handful of X11 calls. Using vglrun allows VGL to intercept these calls, whereas using the game’s built-in mechanism for loading a substitute OpenGL library allows VirtualGL to intercept the GLX and OpenGL calls.

In some cases, the application doesn’t provide an override mechanism such as the above. In these cases, you should pass an argument of -dl to vglrun when starting the application, e.g.:

vglrun -dl foowars

Passing -dl to vglrun forces another library to be loaded ahead of VirtualGL and libGL.so. This new library intercepts any calls to dlopen() and forces the application to open VirtualGL instead of libGL.so.

Section 14 contains specific recipes for getting a variety of games and other applications to work with VirtualGL.

13 Using VirtualGL with Chromium and ModViz VGP

Chromium is a powerful framework for performing various types of parallel OpenGL rendering. It is usually used on clusters of commodity Linux PC’s to divide up the task of rendering scenes with large geometries or large pixel counts (such as when driving a display wall.) Chromium is most often used in one of three configurations:

1. Sort-First Rendering (Image-Space Decomposition)
2. Sort-First Rendering (Image-Space Decomposition) with Readback
3. Sort-Last Rendering (Object-Space Decomposition)

13.1 Configuration 1: Sort-First Rendering (Image-Space Decomposition)

Sort-First Rendering (Image-Space Decomposition) is used to overcome the fill-rate limitations of individual graphics cards. When configured to use sort-first rendering, Chromium divides up the scene based on which polygons will be visible in a particular section of the final image. It then instructs each node of the cluster to render only the polygons that are necessary to generate the image section (“tile”) for that node. This is primarily used to drive high-resolution displays that would be impractical to drive from a single graphics card due to limitations in the card’s framebuffer memory, processing power, or both. Configuration 1 could be used, for instance, to drive a CAVE, video wall, or even an extremely high-resolution monitor. In this configuration, each Chromium node generally uses all of its screen real estate to render a section of the multi-screen image.

VirtualGL is generally not very useful with Configuration 1. You could theoretically install a separate copy of VirtualGL on each display node and use it to redirect the output of each crserver instance to a multi-screen X server running elsewhere on the network. But there would be no way to synchronize the screens on the remote end. Chromium uses DMX to synchronize the screens in a multi-screen configuration, and VirtualGL would have to be made DMX-aware for it to perform the same job. Maybe at some point in the future … If you have a need for such a configuration, let us know.

13.2 Configuration 2: Sort-First Rendering (Image-Space Decomposition) with Readback

Configuration 2 uses the same sort-first principle as Configuration 1, except that each tile is only a fraction of a single screen, and the tiles are recombined into a single window on Node 0. This configuration is perhaps the least often used of the three, but it is useful in cases where the scene contains a large amount of textures (such as in volume rendering) and thus rendering the whole scene on a single node would be prohibitively slow due to fill-rate limitations.

In this configuration, the application is allowed to choose a visual, create an X window, and manage the window as it would normally do. But all other OpenGL and GLX activity is intercepted by the Chromium App Faker (CrAppFaker) so that the rendering task can be split up among the rendering nodes. Once each node has rendered its section of the final image, the tiles get passed back to a Chromium Server (CrServer) process running on Node 0. This CrServer process attaches to the previously-created application window and draws the pixels into it using glDrawPixels().

The general strategy for making this work with VirtualGL is to first make it work without VirtualGL and then insert VirtualGL only into the processes that run on Node 0. VirtualGL must be inserted into the CrAppFaker process to prevent CrAppFaker from sending glXChooseVisual() calls to the X server (which would fail if the X server is a VNC server or otherwise does not provide GLX.) VirtualGL must be inserted into the CrServer process on Node 0 to prevent it from sending glDrawPixels() calls to the X server (which would effectively send uncompressed images over the network.) Instead, VirtualGL forces CrServer to draw into a Pbuffer, and VGL takes charge of transmitting those pixels to the destination X server in the most efficient way possible.

Since Chromium uses dlopen() to load the system’s OpenGL library, preloading VirtualGL into the CrAppFaker and CrServer processes using vglrun is not sufficient. Fortunately, Chromium provides an environment variable, CR_SYSTEM_GL_PATH, which allows one to specify an alternate path in which it will search for the system’s libGL.so. The VirtualGL packages for Linux and Solaris include a symbolic link named libGL.so which really points to the VirtualGL faker library (librrfaker.so) instead. This symbolic link is located in its own isolated directory, so that directory can be passed to Chromium in the CR_SYSTEM_GL_PATH environment variable, thus causing Chromium to load VirtualGL rather than the “real” OpenGL library. Refer to the following table:

Running the CrServer in VirtualGL is simply a matter of setting this environment variable and then invoking crserver with vglrun, e.g.:

export CR_SYSTEM_GL_PATH=/opt/VirtualGL/lib
vglrun crserver

In the case of CrAppFaker, it is also necessary to set VGL_GLLIB to the location of the “real” OpenGL library, e.g. /usr/lib/libGL.so.1. CrAppFaker creates its own fake version of libGL.so which is really just a copy of Chromium’s libcrfaker.so. So VirtualGL, if left to its own devices, will unwittingly try to load libcrfaker.so instead of the “real” OpenGL library. Chromium’s libcrfaker.so will in turn try to load VirtualGL again, and an endless loop will occur.

So what we want to do is something like this:

export CR_SYSTEM_GL_PATH=/opt/VirtualGL/lib
export VGL_GLLIB=/usr/lib/libGL.so.1
crappfaker

CrAppFaker will copy the application to a temp directory and then copy libcrfaker.so to that same directory, renaming it as libGL.so. So when the application is started, it loads libcrfaker.so instead of libGL.so. libcrfaker.so will then load VirtualGL instead of the “real” libGL, because we’ve overridden CR_SYSTEM_GL_PATH to make Chromium find VirtualGL’s fake libGL.so first. VirtualGL will then use the library specified in VGL_GLLIB to make any “real” OpenGL calls that it needs to make.

Note that crappfaker should not be invoked with vglrun.

So, putting this all together, here is an example of how you might start a sort-first rendering job using Chromium and VirtualGL:

1. Start the mothership on Node 0 with an appropriate configuration for performing sort-first rendering with readback
2. Start crserver on each of the rendering nodes
3. On Node 0, set CR_SYSTEM_GL_PATH to the appropriate value for the operating system and application type (see table above)
4. On Node 0, vglrun crserver &
5. On Node 0, set VGL_GLLIB to the location of the “real” libGL, e.g. /usr/lib/libGL.so.1 or /usr/lib64/libGL.so.1
6. On Node 0, launch crappfaker (do not use vglrun here)

Again, it’s always a good idea to make sure this works without VirtualGL before adding VirtualGL into the mix.

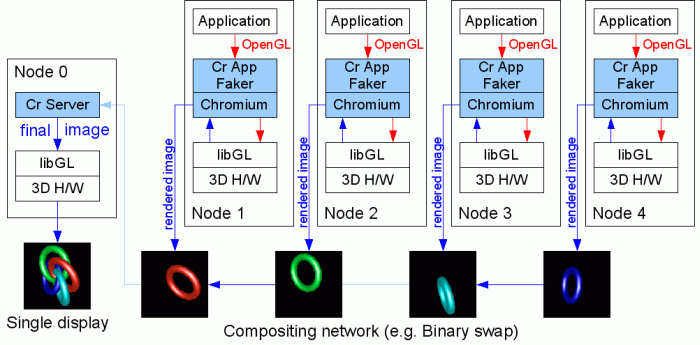

13.3 Configuration 3: Sort-Last Rendering (Object-Space Decomposition)

Sort-Last Rendering is used when the scene contains a huge number of polygons and the rendering bottleneck is processing all of that geometry on a single graphics card. In this case, each node runs a separate copy of the application, and for best results, the application needs to be at least partly aware that it’s running in a parallel environment so that it can give Chromium hints as to how to distribute the various objects to be rendered. Each node generates an image of a particular portion of the object space, and these images must be composited in such a way that the front-to-back ordering of pixels is maintained. This is generally done by collecting Z buffer data from each node to determine whether a particular pixel on a particular node is visible in the final image. The rendered images from each node are often composited using a “binary swap”, whereby the nodes combine their images in a cascading tree so that the overall compositing time is proportional to log₂(N) rather than N.

To make this configuration work with VirtualGL:

1. Start the mothership on Node 0 with an appropriate configuration for performing sort-last rendering
2. Start crappfaker on each of the rendering nodes
3. On Node 0, set CR_SYSTEM_GL_PATH to the appropriate value for the operating system and application type (see table in Section 13.2.)
4. On Node 0, vglrun crserver

CRUT

The Chromium Utility Toolkit provides a convenient way for graphics applications to specifically take advantage of Chromium’s sort-last rendering capabilities. Such applications can use CRUT to explicitly specify how their object space should be decomposed. CRUT applications require an additional piece of software, crutserver, to be running on Node 0. So to make such applications work with VirtualGL:

1. Start the mothership on Node 0 with an appropriate configuration for performing sort-last rendering
2. Start crappfaker on each of the rendering nodes
3. On Node 0, set CR_SYSTEM_GL_PATH to the appropriate value for the operating system and application type (see table in Section 13.2.)
4. On Node 0, vglrun crutserver &
5. On Node 0, vglrun crserver

13.4 A Note About Performance

Chromium’s use of X11 is generally not very optimal. It assumes a very fast connection between the X server and the Chromium Server. In certain modes, Chromium polls the X server on every frame to determine whether windows have been resized, etc. Thus, we have observed that, even on a fast network, Chromium tends to perform much better with VirtualGL running in a TurboVNC session as opposed to VirtualGL running in Direct Mode.

13.5 ModViz VGP and VirtualGL

ModViz Virtual Graphics Platform^TM is a polished commercial clustered rendering framework for Linux which supports all three of the rendering modes described above and provides a much more straightforward interface to configure and run these types of parallel rendering jobs.

All VGP jobs, regardless of configuration, are all spawned through vglauncher, a front-end program which automatically takes care of starting the appropriate processes on the rendering nodes, intercepting OpenGL calls from the application instance(s), sending rendered images back to Node 0, and compositing the images as appropriate. In a similar manner to VirtualGL’s vglrun, VGP’s vglauncher preloads a library (libVGP.so) in place of libGL.so, and this library intercepts the OpenGL calls from the application.

So our strategy here is similar to our strategy for loading the Chromium App Faker. We want to insert VirtualGL between VGP and the real system OpenGL library, so that VGP will call VirtualGL and VirtualGL will call libGL.so. Achieving this with VGP is relatively simple:

export VGP_BACKING_GL_LIB=librrfaker.so
vglrun vglauncher --preload=librrfaker.so:/usr/lib/libGL.so {application}

Replace /usr/lib/libGL.so with the full path of your system’s OpenGL library (/usr/lib64/libGL.so if you are launching a 64-bit application.)

14 Other Application Recipes

15 Advanced OpenGL Features

15.1 Stereo

The general idea behind VirtualGL is to offload the 3D rendering work to the server so that the client only needs the ability to draw 2D images. But unfortunately, there is no way to draw stereo images using 2D (X11) commands, so the VirtualGL client must use OpenGL to draw in stereo. When an application requests a stereo visual, VirtualGL will attempt to ascertain whether the client supports OpenGL and, if so, whether it has stereo visuals available. VirtualGL then checks the server’s display to see whether it has stereo visuals available as well. If both are true, then VirtualGL will return a stereo visual to the application. If, for any given frame, VirtualGL detects that the application has drawn something to one of the right eye buffers, it will read back both eye buffers and send the contents as a pair of compressed images (one for each eye) to the VirtualGL client. The VGL client then decompresses the stereo image pair and draws it as a single stereo frame to the client’s display using glDrawPixels().

The upshot of this is that, in order to use stereo in VirtualGL, the client machine must support OpenGL and GLX (Exceed 3D is required for Windows clients) and must have a graphics card (such as the nVidia Quadro, etc.) which is capable of drawing in stereo. It is usually necessary to explicitly enable stereo visuals in the graphics card configuration for both the client and server machines. Use glxinfo to verify whether or not stereo visuals are enabled on both client and server before attempting to run VirtualGL with a stereo application.

15.2 Transparent Overlays

Transparent overlays have similar requirements and restrictions to stereo. In this case, VirtualGL completely bypasses its own GLX faker and uses indirect OpenGL rendering to render the transparent overlay on the client machine’s 3D hardware. The underlay is still rendered on the server, as always. Using indirect rendering to render the overlay is unfortunately necessary, because there is no reliable way to draw to an overlay using 2D (X11) functions, there are severe performance issues (on some cards) with using glDrawPixels() to draw to the overlay, and there is no reasonable way to composite the overlay and underlay on the server machine.

However, overlays are generally used only for drawing small, simple, static shapes and text, so we have found that it is usually faster to send the overlay geometry over to the client rather than rendering it as an image and sending the image. So even if it were possible to implement overlays without using indirect rendering, it’s likely that indirect rendering would still be the fastest approach.

As with stereo, overlays often must be explicitly enabled in the graphics card’s configuration. In the case of overlays, however, they need only be supported and enabled on the client machine.

Indexed color (8-bit) overlays have been tested and are known to work with nVidia Quadro hardware. True color (24-bit) overlays will probably work as well, but they have not been tested. Use glxinfo to verify whether your client’s X display supports overlays and whether they are enabled. In Exceed 3D, make sure that the “Overlay Support” option is checked in the “Exceed 3D and GLX” applet:

15.3 Indexed (PseudoColor) Rendering

In a PseudoColor visual, each pixel is represented by an index which refers to a location in a color table. The color table stores the actual color values (256 of them in the case of 8-bit PseudoColor) which correspond to each index. An application merely tells the X server which color index to use when drawing, and the X server takes care of mapping that index to an actual color from the color table. OpenGL allows for rendering to Pseudocolor visuals, and it does so by being intentionally ignorant of the relationship between indices and actual colors. As far as OpenGL is concerned, each color index value is just a meaningless number, and it is only when the final image is drawn by the X server that these numbers take on meaning. As a result, many pieces of OpenGL’s core functionality, such as lighting and shading, either have undefined behavior or do not work at all with PseudoColor rendering. PseudoColor rendering used to be a common technique to visualize scientific data, because such data often only contained 8 bits per sample to begin with. Applications could manipulate the color table to allow the user to dynamically control the relationship between sample values and colors. As more and more graphics cards drop support for PseudoColor rendering, however, the applications which use it are a vanishing breed.

VirtualGL supports PseudoColor rendering if a PseudoColor visual is available on the client’s display. A PseudoColor visual need not be present on the server. On the server, VirtualGL uses the red channel of a standard RGB Pbuffer to store the color index. Upon receiving an end of frame trigger, VirtualGL reads back the red channel of the Pbuffer and uses XPutImage() to draw it into the appropriate window. The upshot of this is that there is no compression with PseudoColor rendering in VirtualGL. However, since there is only 1 byte per pixel in this mode, the images can still be sent to the client reasonably quickly even though they are uncompressed.

PseudoColor rendering should work in VNC, provided that the VNC server is configured for 8-bit Pseudocolor. TurboVNC does not support PseudoColor, but RealVNC and other VNC flavors do. Note, however, that VNC cannot provide both PseudoColor and TrueColor visuals at the same time.

16 Performance Measurement

16.1 VirtualGL’s Built-In Profiling System

The easiest way to uncover bottlenecks in the VirtualGL pipeline is to set the VGL_PROFILE environment variable to 1 on both server and client (passing an argument of +pr to vglrun on the server has the same effect.) This will cause VirtualGL to measure and report the throughput of the various stages in its pipeline. For example, here are some measurements from a dual Pentium 4 server communicating with a Pentium III client on a 100 Mbit LAN:

Server

Readback   - 43.27 Mpixels/sec - 34.60 fps
Compress 0 - 33.56 Mpixels/sec - 26.84 fps
Total      -  8.02 Mpixels/sec -  6.41 fps - 10.19 Mbits/sec (18.9:1)

Client

Decompress - 10.35 Mpixels/sec -  8.28 fps
Blit       - 35.75 Mpixels/sec - 28.59 fps
Total      -  8.00 Mpixels/sec -  6.40 fps - 10.18 Mbits/sec (18.9:1)

The total throughput of the pipeline is 8.0 Mpixels/sec, or 6.4 frames/sec, indicating that our frame is 8.0 / 6.4 = 1.25 Megapixels in size (a little less than 1280 x 1024 pixels.) The readback and compress stages, which occur in parallel on the server, are obviously not slowing things down. And we’re only using 1/10 of our available network bandwidth. So we look to the client and discover that its slow decompression speed is the primary bottleneck. Decompression and blitting on the client do not occur in parallel, so the aggregate performance is the harmonic mean of the two rates: [1/ (1/10.35 + 1/35.75)] = 8.0 Mpixels/sec.

16.2 Frame Spoiling

By default, VirtualGL will only send a frame to the client if the client is ready to receive it. If a rendered frame arrives at the server’s queue and a previous frame is still being processed, the new frame is dropped (“spoiled.”) This prevents a backlog of frames on the server, which would cause a perceptible delay in the responsiveness of interactive applications. But when running non-interactive applications, particularly benchmarks, it may be desirable to disable frame spoiling. With frame spoiling disabled, the server will render frames only as quickly as the VirtualGL pipeline can receive them, which will conserve server resources as well as allow OpenGL benchmarks to accurately measure the throughput of the VirtualGL pipeline. With frame spoiling enabled, these benchmarks will report meaningless data, since they are measuring the server’s rendering rate, and that rendering rate is decoupled from the overall throughput of VirtualGL.

To disable frame spoiling, set the VGL_SPOIL environment variable to 0 on the server or pass an argument of -sp to vglrun. See Section 18.1 for more details.

16.3 VirtualGL Diagnostic Tools

VirtualGL includes several tools which can be useful in diagnosing performance problems with the system.

NetTest

NetTest is a low-level network benchmark that uses the same network classes as VirtualGL. It can be used to test the latency and throughput of any TCP/IP connection, with or without SSL encryption. The VirtualGL Linux package installs NetTest in /opt/VirtualGL/bin. The VirtualGL Solaris package installs it in /opt/SUNWvgl/bin. The Windows installer installs it in c:\program files\VirtualGL-{version}-{build} by default.

To use NetTest, first start up the nettest server on one end of the connection:

nettest -server [-ssl]

(use -ssl if you want to test the performance of SSL encryption over this particular connection.)

Next, start the client on the other end of the connection:

nettest -client {server_name} [-ssl]

(server_name is the hostname or IP address of the machine where the NetTest server is running. Use -ssl if the NetTest server is running in SSL mode.)

The nettest client will produce output similar to the following:

TCP transfer performance between localhost and {server}:

Transfer size  1/2 Round-Trip      Throughput
(bytes)                (msec)        (MB/sec)
1                    0.176896        0.005391
2                    0.179391        0.010632
4                    0.181600        0.021006
8                    0.181292        0.042083
16                   0.181694        0.083981
32                   0.181690        0.167965
64                   0.182010        0.335339
128                  0.182197        0.669991
256                  0.183593        1.329795
512                  0.183800        2.656586
1024                 0.186189        5.245015
2048                 0.379702        5.143834
4096                 0.546805        7.143778
8192                 0.908712        8.597335
16384                1.643810        9.505359
32768                2.961701       10.551368
65536                5.769007       10.833754
131072              11.313003       11.049232
262144              22.412990       11.154246
524288              44.760510       11.170561
1048576             89.294810       11.198859
2097152            178.426602       11.209091
4194304            356.547194       11.218711

We can see that the throughput peaks out at about 11.2 MB/sec. 1 MB = 1048576 bytes, so 11.2 MB/sec = 94 million bits per second, which is pretty good for a 100 Mbit connection. We can also see that, as the transfer size decreases, the round-trip time becomes dominated by latency. The latency is the same thing as the 1/2 round-trip time for a zero-byte packet, which is about 0.18 ms in this case.

CPUstat

CPUstat is available only in the VirtualGL Linux packages and is located in the same place as NetTest (/opt/VirtualGL/bin.) It measures the average, minimum, and peak CPU usage for all processors combined and for each processor individually. On Windows, this same functionality is provided in the Windows Performance Monitor, which is part of the operating system.

CPUstat measures the CPU usage over a given sample period (a few seconds) and continuously reports how much the CPU was utilized since the last sample period. Output for a particular sample looks something like this:

ALL :  51.0 (Usr= 47.5 Nice=  0.0 Sys=  3.5) / Min= 47.4 Max= 52.8 Avg= 50.8
cpu0:  20.5 (Usr= 19.5 Nice=  0.0 Sys=  1.0) / Min= 19.4 Max= 88.6 Avg= 45.7
cpu1:  81.5 (Usr= 75.5 Nice=  0.0 Sys=  6.0) / Min= 16.6 Max= 83.5 Avg= 56.3

The first column indicates what percentage of time the CPU was active since the last sample period (this is then broken down into what percentage of time the CPU spent running user, nice, and system/kernel code.) “ALL” indicates the average utilization across all CPU’s since the last sample period. “Min”, “Max”, and “Avg” indicate a running minimum, maximum, and average of all samples since cpustat was started.

Generally, if an application’s CPU usage is fairly steady, you can run CPUstat for a bit and wait for the Max. and Avg. for the “ALL” category to stabilize, then that will tell you what the application’s peak and average % CPU utilization is.

TCBench

TCBench was born out of the need to compare VirtualGL’s performance to other thin client packages, some of which had frame spoiling features that couldn’t be disabled. TCBench measures the frame rate of a thin client system as seen from the client’s point of view. It does this by attaching to one of the client windows and continuously reading back a small area at the center of the window. While this may seem to be a somewhat non-rigorous test, experiments have shown that if care is taken to make sure that the application is updating the center of the window on every frame (such as in a spin animation), TCBench can produce quite accurate results. It has been sanity checked with VirtualGL’s internal profiling mechanism and with a variety of system-specific techniques, such as monitoring redraw events on the client’s windowing system.

The VirtualGL Linux package installs TCBench in /opt/VirtualGL/bin. The VirtualGL Solaris package installs TCBench in /opt/SUNWvgl/bin. The Windows installer installs it in c:\program files\VirtualGL-{version}-{build} by default. Run tcbench from the command line, and it will prompt you to click in the window you want to measure. That window should already have an automated animation of some sort running before you launch TCBench.

TCBench can also be used to measure the frame rate of applications that are running on the local console, although for extremely fast applications (those that exceed 40 fps on the local console), you may need to increase the sampling rate of TCBench to get accurate results. The default sampling rate of 50 samples/sec should be fine for measuring the throughput of VirtualGL and other thin client systems.

tcbench -?

gives the relevant command line switches that can be used to adjust the benchmark time, the sampling rate, and the x and y offset of the sampling area within the window.

17 The VirtualGL Configuration Dialog

Several of VirtualGL’s configuration parameters can be changed on the fly once an application has started. This is accomplished by using the VirtualGL configuration dialog, which can be activated by holding down the CTRL and SHIFT keys and pressing the F9 key while any one of the application’s windows is active. This displays a dialog box similar to the following:

You can use this dialog to enable or disable frame spoiling or to adjust the JPEG quality and subsampling. Changes are reflected immediately in the application.

Frame Spoiling

Clicking on this button will toggle frame spoiling on and off. If the button is highlighted (black), then frame spoiling is enabled.

Qual Preset: Broadband/T1

Clicking on this button will set the JPEG quality to 30 and the JPEG subsampling to 4:1:1, settings which will produce good performance on broadband connections (but at the expense of image quality.)

Qual Preset: LAN

Clicking on this button will set the JPEG quality to 95 and the JPEG subsampling to 4:4:4, settings which will produce perceptually lossless image quality (100 Mbit/sec switched LAN recommended.)

JPEG Quality

Click and drag the slider to change the JPEG quality to an arbitrary value between 1 and 100.

JPEG Subsampling

Click on any of the three buttons to change the JPEG subsampling. The highlighted (black) button indicates the current value.

Close Dialog

Close the dialog (you can also use the close gadget on the dialog window)

The VGL_GUI environment variable can be used to change the key sequence used to pop up the dialog box. If the default of CTRL-SHIFT-F9 is not suitable, then set VGL_GUI to any combination of ctrl, shift, alt, and one of {f1, f2,..., f12} (these are not case sensitive.) e.g.

export VGL_GUI=CTRL-F9

will cause the dialog box to pop up whenever CTRL-F9 is pressed.

To disable the VirtualGL dialog altogether, set VGL_GUI to none.

18 Advanced Configuration

18.1 Server Settings

You can control the operation of the VirtualGL faker in four different ways. Each method of configuration takes precedence over the previous method:

1. Setting a configuration environment variable globally (e.g. in /etc/profile)
2. Setting a configuration environment variable on a per-user basis (e.g. in ~/.bashrc)
3. Setting a configuration environment variable only for the current shell session (e.g. export VGL_XXX={whatever})
4. Passing a configuration option as an argument to vglrun. This effectively overrides any previous environment variable setting corresponding to that configuration option.

Environment Variable Name	vglrun Command-Line Override	Description	Default Value
VGL_CLIENT	-cl <client display>	The X display where VirtualGL should send its image stream When running in Direct Mode, VirtualGL uses a dedicated TCP/IP connection to transmit compressed images of an application’s OpenGL rendering area from the application server to the client display. Thus, the server needs to know on which machine the VirtualGL client software is running, and it needs to know which X display on that machine will be used to draw the application’s GUI. VirtualGL can normally surmise this by reading the application server’s DISPLAY environment variable. But in cases where X11 traffic is tunneled through SSh or LBX or another type of indirect X11 connection, the DISPLAY environment variable on the application server may not point to the client machine. In these cases, set VGL_CLIENT to the display where the application’s GUI will end up, e.g. export VGL_CLIENT={my_client_machine}:0.0 ** This option has no effect in Raw Mode. **	Read from the DISPLAY environment
VGL_COMPRESS=0 VGL_COMPRESS=1	-c <0, 1>	0 = Raw Mode (send rendered images uncompressed via. X11), 1 = Direct Mode (compress rendered images as JPEG & send on a separate socket) When this option is set to 0, VirtualGL will bypass its internal image compression pipeline and instead use XPutImage() to composite the rendered 3D images into the appropriate application window. This mode (“Raw Mode”) is primarily useful in conjunction with VNC, NX, or other remote display software that performs X11 rendering on the server and uses its own mechanism for compressing and transporting images to the client. Enabling Raw Mode on a remote X11 connection is not advisable, since it will result in uncompressed images being sent over the network. If this option is not specified, then VirtualGL’s default behavior is to use Direct Mode when the application is being displayed to a remote X server and to use Raw Mode otherwise. VirtualGL assumes that if the DISPLAY environment variable begins with a colon or with “unix:” (e.g. “:0.0”, “unix:1000.0”, etc.), then the X11 connection is local and thus doesn’t require image compression. Otherwise, it assumes that the X11 connection is remote and that compression is required. If the display string begins with “localhost” or with the server’s hostname, VGL assumes that the display is being tunneled through SSh, and it enables Direct Mode in this case. NOTE: Stereo does not work with Raw Mode. See Section 9 for more details.	Compression enabled (“Direct Mode”) if the application is displaying to a remote X server, disabled (“Raw Mode”) otherwise
VGL_DISPLAY	-d <display or GLP device>	The display or GLP device to use for 3D rendering If your server has multiple 3D graphics cards and you want the OpenGL rendering to be redirected to a display other than :0, set VGL_DISPLAY=:1.0 or whatever. This could be used, for instance, to support many application instances on a beefy multi-pipe graphics server. GLP mode (Solaris/Sparc only): Setting this option to GLP will enable GLP mode and select the first available GLP device for rendering. You can also set this option to the pathname of a specific GLP device (e.g. /dev/fbs/jfb0.) GLP is a special feature of Sun’s OpenGL library which allows an application to render into Pbuffers on a graphics card even if there is no X server running on that graphics card. See Section 11 for more details on GLP.	:0
VGL_FPS	-fps <floating point number greater than 0>	Limit the client/server frame rate to the specified number of frames per second Setting VGL_FPS or passing -fps as an argument to vglrun will enable VirtualGL’s frame rate governor. When enabled, the frame rate governor will attempt to limit the overall throughput of the VirtualGL pipeline to the specified number of frames/second. If frame spoiling is disabled, this effectively limits the server’s rendering frame rate as well. This option applies regardless of whether VirtualGL is being run in Direct Mode (with compression enabled) or in Raw Mode (with compression disabled.)	Frame rate governor disabled
VGL_GAMMA=0 VGL_GAMMA=1 VGL_GAMMA=<gamma correction factor>	-g or +g or -gamma <gamma correction factor>	“Gamma” refers to the relationship between the intensity of light which your computer’s monitor is instructed to display and the intensity which it actually displays. The curve is an exponential curve of the form Y = XG, where X is between 0 and 1. G is called the “gamma” of the monitor. PC monitors and TV’s usually have a gamma of around 2.2. Some of the math involved in 3D rendering assumes a linear gamma (G = 1.0), so technically speaking, 3D applications will not display with mathematical correctness unless the pixels are “gamma corrected” to counterbalance the non-linear response curve of the monitor. But some systems do not have any form of built-in gamma correction, and thus the applications developed for such systems have usually been designed to display properly without gamma correction. Gamma correction involves passing pixels through a function of the form X = W1/G, where G is the “gamma correction factor” and should be equal to the gamma of the monitor. So the final output is Y = XG = (W1/G)G = W, which describes a linear relationship between the intensity of the pixels drawn by the application and the intensity of the pixels displayed by the monitor. VGL_GAMMA=1 or vglrun +g : Enable gamma correction with default settings This option tells VirtualGL to enable gamma correction using the best available method. If VirtualGL is remotely displaying to a Solaris/Sparc X server which has gamma-corrected X visuals, then VGL will attempt to assign one of these visuals to the application. This causes the 3D output of the application to be gamma corrected by the factor specified in fbconfig on the client machine (default: 2.22.) Otherwise, if the X server (or proxy) does not have gamma-corrected X visuals or if the gamma-corrected visuals it has do not match the application’s needs, then VirtualGL performs gamma correction internally and uses a default gamma correction factor of 2.22. This option emulates the default behavior of OpenGL applications running locally on Sparc machines. VGL_GAMMA=0 or vglrun -g : Disable gamma correction This option tells VGL not to use gamma-corrected visuals, even if they are available on the X server, and disables VGL’s internal gamma correction system as well. This emulates the default behavior of OpenGL applications running locally on Linux or Solaris/x86 machines. VGL_GAMMA={gamma correction factor} or vglrun -gamma {gamma correction factor} : Enable VGL’s internal gamma correction system with the specified gamma correction factor If VGL_GAMMA is set to an arbitrary floating point value, then VirtualGL performs gamma correction internally using the specified value as the gamma correction factor. You can also specify a negative value to apply a “de-gamma” function. Specifying a gamma correction factor of G (where G < 0) is equivalent to specifying a gamma correction factor of -1/G.	VGL_GAMMA=1 on Solaris/Sparc VGL servers, VGL_GAMMA=0 otherwise
VGL_GLLIB		The location of an alternate OpenGL library Normally, VirtualGL loads the first OpenGL dynamic library that it finds in the dynamic linker path (usually /usr/lib/libGL.so.1, /usr/lib64/libGL.so.1, or /usr/lib/64/libGL.so.1.) You can use this setting to explicitly specify another OpenGL dynamic library to load. Normally, you shouldn’t need to muck with this unless something doesn’t work. However, this setting is necessary when using VirtualGL with Chromium.
VGL_GUI		Key sequence used to invoke the configuration dialog VirtualGL will normally monitor an application’s X event queue and pop up the VirtualGL configuration dialog whenever CTRL-SHIFT-F9 is pressed. In the event that this interferes with a key sequence that the application is already using, you can redefine the key sequence used to pop up VGL’s configuration dialog by setting VGL_GUI to some combination of shift, ctrl, alt, and one of {f1, f2, ..., f12}. You can also set VGL_GUI to none to disable the configuration dialog altogether. See Section 17 for more details.	shift-ctrl-f9
VGL_GUI_XTTHREADINIT		0 to prevent VGL from calling XtToolkitThreadInitialize() Xt & Motif applications are supposed to call XtToolkitThreadInitialize() if they plan to access Xt functions from two or more threads simultaneously. But rarely, a multi-threaded Xt/Motif application may avoid calling XtToolkitThreadInitialize() and rely on the fact that avoiding this call disables application and process locks. This behavior is generally considered errant on the part of the application, but the application developers have probably figured out other ways around the potential instability that this situation creates. The problem arises whenever VirtualGL pops up its configuration dialog (which is written using Xt.) In order to create this dialog, VirtualGL creates a new Xt thread and calls XtToolkitThreadInitialize() as it is supposed to do to guarantee thread safety. But if the application into which VGL is loaded exhibits the errant behavior described above, suddenly enabling application and process locks may cause the application to deadlock. Setting VGL_GUI_XTTHREADINIT to 0 will remove VGL’s call to XtToolkitThreadInitialize() and should thus eliminate the deadlock. In short, if you try to pop up the VirtualGL config dialog and notice that it hangs the application, try setting VGL_GUI_XTTHREADINIT to 0.	1
VGL_NPROCS	-np <# of CPUs> or -np 0 (automatically determine the optimal number of CPUs to use)	Specify the number of CPUs to use for multi-threaded compression VirtualGL can divide the task of compressing each frame among multiple server CPUs. This might speed up the overall throughput if the compression stage of the pipeline is the primary bottleneck. The default behavior (equivalent to setting VGL_NPROCS=0) is to use all but one of the available CPUs, up to a maximum of 3 total. On a large multiprocessor system, the speedup is almost linear up to 3 processors, but the algorithm scales very little past that point. VirtualGL will not allow more than 4 processors total to be used for compression, nor will it allow you to assign more processors than are available in the system. ** This option has no effect in “Raw” Mode. **	1P system: 1 2P system: 1 3P system: 2 4P & larger: 3
VGL_PORT	-p <port>	The TCP port to use when connecting to the client ** This option has no effect in “Raw” Mode. **	4242 for unencrypted connections, 4243 for SSL connections
VGL_PROFILE=0 VGL_PROFILE=1	-pr or +pr	Enable/disable profiling output If enabled, this will cause the VirtualGL faker to continuously benchmark itself and periodically print out the throughput of reading back, compressing, and sending pixels to the client. See Section 16 for more details.	Profiling disabled
VGL_QUAL	-q <1-100>	An integer between 1 and 100 (inclusive) This setting allows you to specify the quality of the JPEG compression. Lower is faster but also grainier. The default setting should produce perceptually lossless performance. ** This option has no effect in “Raw” Mode. **	95
VGL_READBACK=0 VGL_READBACK=1		Enable/disable readback On rare occasions, it might be desirable to have VirtualGL redirect OpenGL rendering from an application into a Pbuffer but not automatically read back and send the rendered pixels. Some applications have their own mechanisms for reading back the buffer, so disabling VirtualGL’s readback mechanism prevents duplication of effort. This feature was developed initially to support running ParaView in parallel using MPI. ParaView MPI normally uses MPI processes 1 through N as rendering servers, each drawing a portion of the geometry into a separate window running on a separate X display. ParaView reads back these server windows and composites the pixels into the main application window, which is controlled by MPI process 0. By creating a script which passes a different value of VGL_DISPLAY and VGL_READBACK to each MPI process, it is possible to make all of the ParaView server processes render to off-screen buffers on different graphics cards while preventing VirtualGL from displaying any pixels except those generated by process 0.	Readback enabled
VGL_SPOIL=0 VGL_SPOIL=1	-sp or +sp	Enable/disable frame spoiling By default, VirtualGL will drop frames so as not to slow down the rendering rate of the server’s graphics engine. This should produce the best results with interactive applications, but it may be desirable to turn off frame spoiling when running benchmarks or other non-interactive applications. Turning off frame spoiling will force one frame to be read back and sent on each end-of-frame event, so that the frame rate reported by OpenGL benchmarks will accurately reflect the frame rate seen by the user. Disabling frame spoiling also prevents non-interactive applications from wasting graphics resources by rendering frames that will never be seen. With frame spoiling turned off, the rendering pipeline behaves as if it is fill-rate limited to about 30 or 40 Megapixels/second, the maximum throughput of the VirtualGL system on current CPU’s.	Spoiling enabled
VGL_SSL=0 VGL_SSL=1	-s or +s	Tunnel the VirtualGL compressed image stream inside a secure socket layer ** This option has no effect in “Raw” Mode. **	SSL disabled
VGL_SUBSAMP	-samp <411|422|444>	411, 422, or 444 This allows you to manually specify the level of chrominance subsampling in the JPEG compressor. By default, VirtualGL uses no chrominance subsampling (AKA “4:4:4 subsampling”) when it compresses images for delivery to the client. Subsampling is premised on the fact that the human eye is more sensitive to changes in brightness than to changes in color. Since the JPEG image format uses a colorspace in which brightness (luminance) and color (chrominance) are separated into different channels, one can sample the brightness for every pixel and the color for every other pixel and produce an image which has 16 million colors but uses an average of only 16 bits per pixel instead of 24. This is called “4:2:2 subsampling”, since for every 4 pixels of luminance, there are only 2 pixels of each chrominance component. Likewise, one can sample every fourth chrominance component to produce a 16-million color image with only 12 bits per pixel. The latter is called “4:1:1 subsampling.” Subsampling increases the performance and reduces the network usage, since there is less data to move around, but it can produce some visible artifacts. Subsampling artifacts are rarely observed with volume data, since it usually only contains 256 colors to begin with. But narrow, aliased lines and other sharp features on a black background will tend to produce subsampling artifacts. The Axis Indicator from a Popular Visualization App displayed with 4:4:4, 4:2:2, and 4:1:1 subsampling (respectively): NOTE: If you select 4:1:1 subsampling, VirtualGL will in fact try to use 4:2:0 instead. 4:2:0 samples every other pixel both horizontally and vertically rather than sampling every fourth pixel horizontally. But not all JPEG codecs support 4:2:0, so 4:1:1 is used when 4:2:0 is not available. ** This option has no effect in “Raw” Mode. **	444
VGL_SYNC=0 VGL_SYNC=1	-sync or +sync	Enable/disable strict 2D/3D synchronization (necessary to pass GLX conformance tests) Normally, VirtualGL’s operation is asynchronous from the point of view of the application. The application swaps the buffers or calls glFinish() or glFlush() or glXWaitGL(), and VirtualGL reads back the framebuffer and sends the pixels to the client’s display … eventually. This will work fine for the vast majority of applications, but it is not strictly conformant. Technically speaking, when an application calls glXWaitGL() or glFinish(), it is well within its rights to expect the OpenGL-rendered pixels to be immediately available in the X window. Fortunately, very few applications actually do expect this, but on rare occasions, an application may try to use XGetImage() or other X11 functions to obtain a bitmap of the pixels that were rendered by OpenGL. Enabling VGL_SYNC is a somewhat extreme measure that may be needed to get such applications to work properly. It was developed primarily as a way to pass the GLX conformance suite (conformx, specifically.) When VGL_SYNC is enabled, every call to glFinish() or glXWaitGL() will cause the contents of the server’s framebuffer to be read back and synchronously drawn into the client’s window without compression or frame spoiling. The call to glFinish() or glXWaitGL() will not return until VirtualGL has verified that the pixels have been delivered into the client’s window. As such, enabling this mode can have potentially dire effects on performance.	Synchronization disabled
VGL_TILESIZE		A number between 8 and 1024 (inclusive) Normally, in Direct Mode, VirtualGL will divide an OpenGL window into tiles of 256x256 pixels, compare each tile vs. the previous frame, and only compress & send the tiles which have changed. It will also divide up the task of compressing these tiles among the available CPUs in a round robin fashion, if multi-threaded compression is enabled. There are several tradeoffs that must be considered when choosing a tile size: Smaller tile sizes: Better parallel scalability Worse compression efficiency Better inter-frame optimization Worse network efficiency Larger tile sizes: Worse parallel scalability Better compression efficiency Worse inter-frame optimization Better network efficiency Smaller tiles can more easily be divided up among multiple CPUs, but they compress less efficiently (and less quickly) on an individual basis. Using larger tiles can reduce traffic to the client by allowing the server to send only one frame update instead of many. But on the flip side, using larger tiles decreases the chance that a tile will be unchanged from the previous frame. Thus, the server may only send one or two packets per frame, but the cumulative size of those packets may be much larger than if a smaller tile size was used. 256x256 was chosen as the default because, in experiments, it provided the best balance between scalability and efficiency on the platforms that VirtualGL supports. ** This option has no effect in “Raw” Mode. **	256
VGL_TRACE=0 VGL_TRACE=1	-tr or +tr	Enable/disable tracing When tracing is enabled, VirtualGL will log all calls to the GLX and X11 functions it is intercepting, as well as the arguments, return values, and execution times for those functions. This is useful when diagnosing interaction problems between VirtualGL and a particular OpenGL application.	Tracing disabled
VGL_VERBOSE=0 VGL_VERBOSE=1	-v or +v	Enable/disable verbosity When in verbose mode, VirtualGL will reveal some of the decisions it makes behind the scenes, such as which code path it is using to compress JPEG images, which type of X11 drawing it is using, etc. This can be helpful when diagnosing performance problems.	Verbosity disabled
VGL_X11LIB		the location of an alternate X11 library Normally, VirtualGL loads the first X11 dynamic library that it finds in the dynamic linker path (usually /usr/lib/libX11.so.?, /usr/lib/64/libX11.so.?, /usr/X11R6/lib/libX11.so.?, or /usr/X11R6/lib64/libX11.so.?.) You can use this setting to explicitly specify another X11 dynamic library to load. Normally, you shouldn’t need to muck with this unless something doesn’t work.
VGL_XVENDOR		Return a fake X11 vendor string when the application calls XServerVendor() Some applications expect XServerVendor() to return a particular value, which the application (sometimes erroneously) uses to figure out whether it’s running locally or remotely. This setting allows you to fool such applications into thinking they’re running on a “local” X server rather than a remote connection.

18.2 Client Settings

Environment Variables

vglclient Command-Line Arguments
